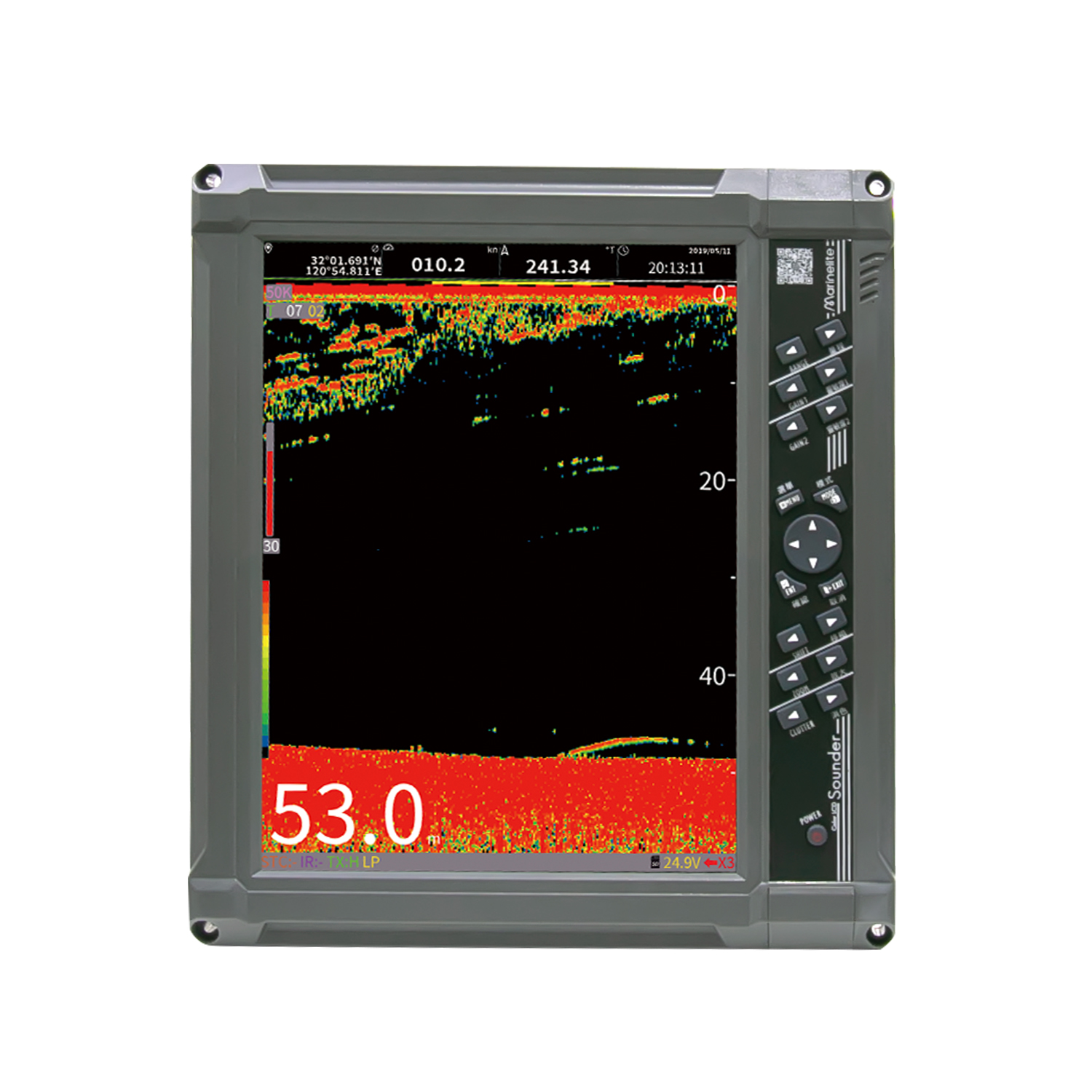

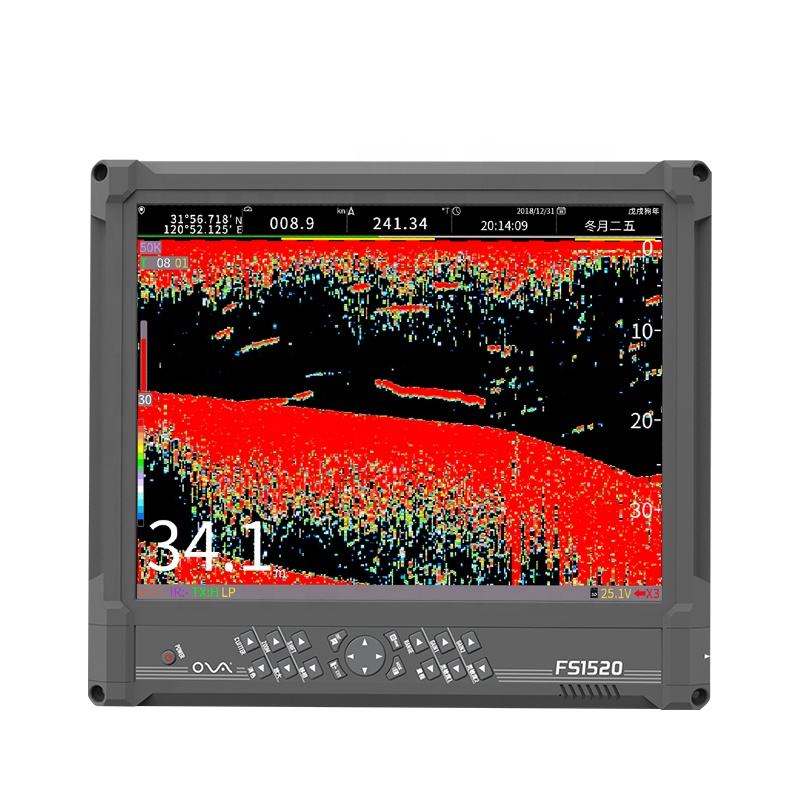

Description

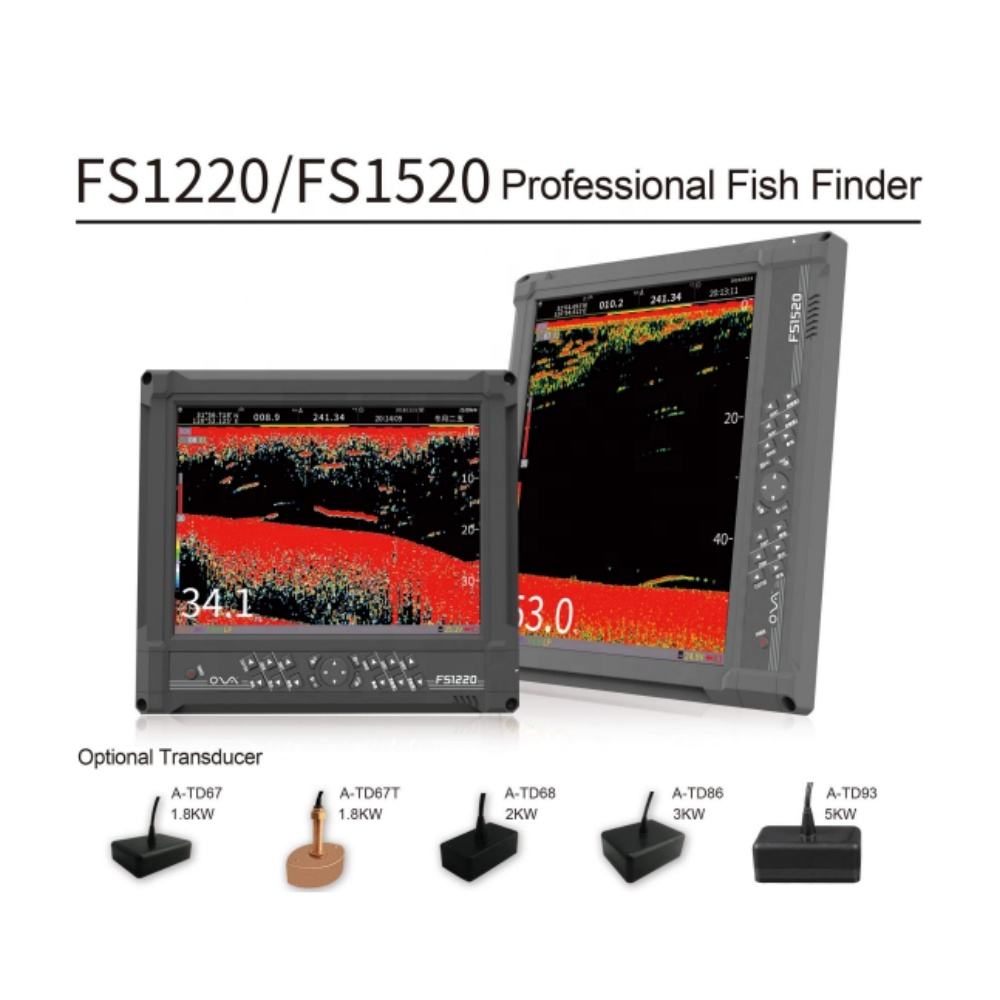

The function of Fish Finder is powerful, the precision of sounding is high, the operation is simple, the appearance is compact, and it can be widely used in fishing industry in the sea, rivers, and lakes. Sonar accessories with different power and scanning modes can be selected as needed.
It can be connected to an external water temperature sensor to obtain the current water temperature. It can also be connected to an external GPS/GNSS module to provide navigation services. Furthermore, it can be connected to an external AIS module to provide AIS security services. It can also output GPS, AIS, and other NMEA messages to other external devices.
Product performance：
- High contrast and brightness adjusting effect, suitable for use in bright light and at night；
- Advanced DSP high image supersonic digital processing technology, realizing the low blind spot and the high resolution echo；
- Full quick sampling,let every fish be shown;
- Dual frequency display, and multiple modes of background with human design；
- User-friendly design with multiple color schemes and background modes；
- Professional design, beautiful and fashion, delicate and durable, containing multi-language menu display function.
Technical parameters：
| Model | FP1521X |
| TX Frequency | 50&200KHz |
| Output Power | 1500W-3000W |
| TXRate | 0.12~3.0ms |
| Accuracy | 0.1m |
| Sensitivity | -95dBm |
| Alarm | Depth,Voltage,Temperature |
| Language | Simplified Chinese, English, Traditional Chinese |
| Display Unit | |
| Display Mode | Dual frequency,Single frequency (high or low freq.), A-scope, Zoom(high or low freq.) |
| Expansion Mode | Auto Expansion,Manual Zoom,Bottom Lock |
| TXRate | 7 steps（stop、1/8、1/4、1/2、1/1、2/1、3/1） |
| Color | Echo color:5 color schemes
Background color：black, blue |
| Interface | |
| Input data | IEC61162-1（NMEA0183）RMC, GLL |
| Output data | IEC61162-1(NMEA0183）DPT, DBT(After GLL and RMC Input) |
| Serial port to print | Suitable for printer DPU-414 |
| Power Supply | DC 24V(11-35V) |
| Environmental | |
| Operating temperature | -10℃~+40℃ Compliance with IEC60945 standard |
| Working humidity | 10~90% |
