Description

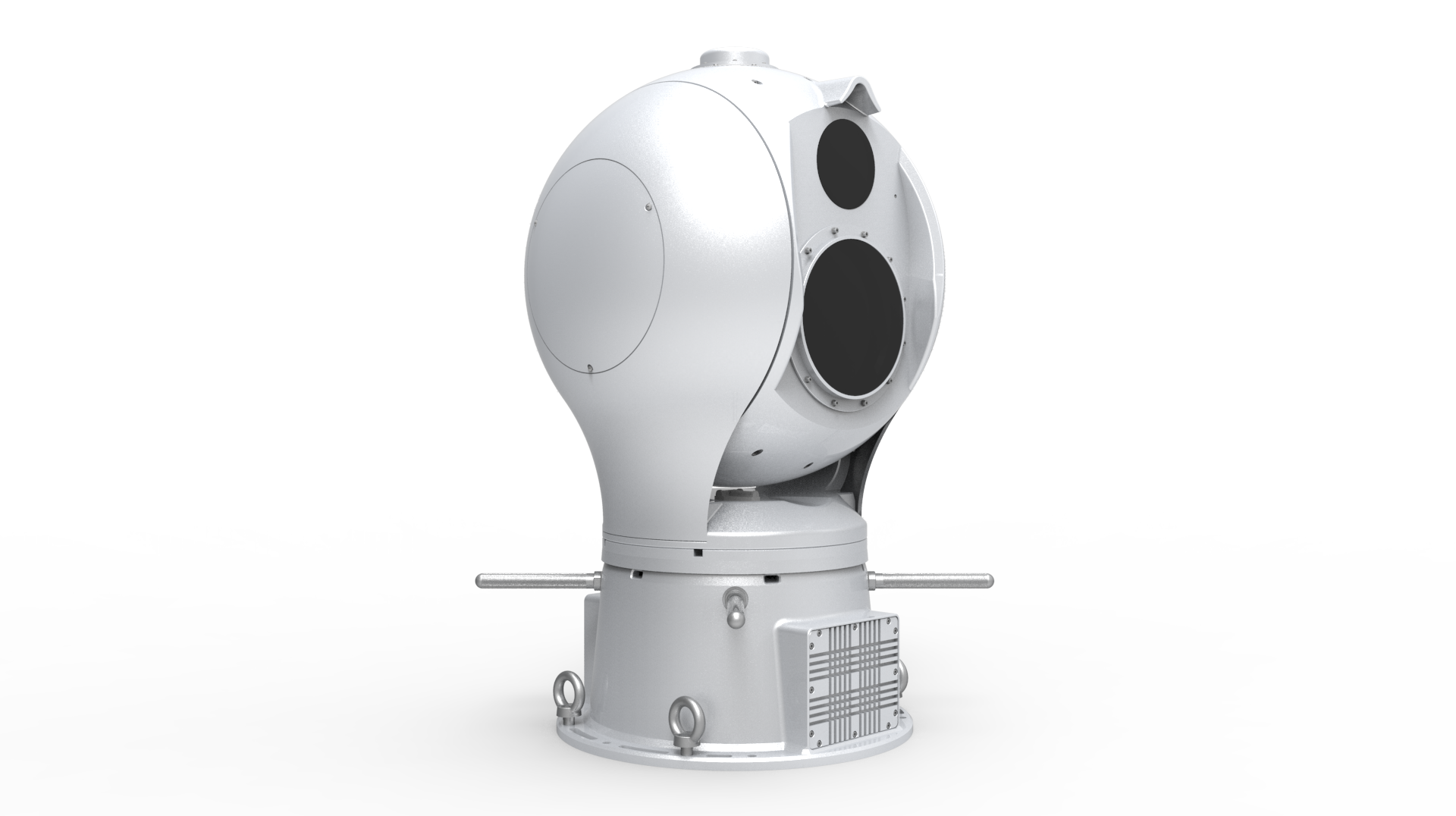

Dual‑Spectrum Marine Imaging System

Thermal + Visible‑Light | Stabilized Marine Gimbal | All‑Weather Navigation | AI‑Enhanced Detection

1. System Overview

The Dual‑Spectrum Marine Imaging System is engineered for vessels that require uncompromising visibility in all weather and lighting conditions. Combining a high‑performance uncooled thermal core with a precision visible‑light camera, the system delivers reliable long‑range detection and operational clarity for yachts, fishing vessels, and offshore platforms.

2. Dual‑Spectrum Imaging Architecture

• Thermal Channel: 640*512 resolution, <35mk NETD, 17μm pixel pitch
• Visible‑Light Channel: 2MP/4MP high‑definition optical module
• All‑Weather Performance: Clear imaging in darkness, fog, rain, glare, and backlit conditions

The thermal sensor identifies heat signatures from vessels, humans, engines, and floating obstacles, while the visible‑light camera provides color detail for identification and documentation.

3. Marine‑Grade Stabilized Gimbal

• 0.028° mechanical stabilization for rough‑sea operation
• 360° continuous rotation for uninterrupted horizon scanning
• -90° to +90° elevation for full waterline‑to‑sky coverage

The reinforced gimbal platform maintains image stability during high‑speed transit, heavy swell, and offshore turbulence.

4. Integrated Network Connectivity

The imaging system includes a marine‑grade network interface, enabling seamless integration with:

• Vessel LAN / shipboard monitoring networks
• NVR / VMS recording systems
• Navigation displays and helm consoles
• Remote monitoring terminals

This allows real‑time thermal and optical video streaming, remote PTZ control, and system diagnostics through standard IP‑based marine infrastructure.

5. AI‑Enhanced Detection & Tracking

Built‑in AI algorithms provide advanced situational awareness beyond traditional imaging:

• Fire & Smoke Detection Early‑stage thermal anomaly detection for onboard safety, engine‑room monitoring, and deck‑level hazard awareness.
• Object Tracking & Collision Prediction Automatically identifies and tracks approaching vessels, floating debris, buoys, and unknown obstacles. The system analyzes movement vectors and estimates collision probability, supporting night navigation and narrow‑channel maneuvering.

These AI capabilities significantly enhance operational safety during night runs, fog conditions, and offshore operations.

6. Operational Capabilities

• Long‑range vessel and obstacle detection
• Night navigation and collision avoidance
• Man‑overboard search and thermal tracking
• Fishing operations: spotting fish activity, nets, and surface disturbances
• Harbor entry, anchoring, and narrow‑channel maneuvering
• Fire/smoke early warning and onboard safety monitoring

Designed for continuous duty in saltwater environments, the system uses corrosion‑resistant materials and sealed housings for long‑term reliability.

7. Marine Applications

• Private yachts & superyachts
• Commercial fishing vessels
• Offshore support vessels
• Maritime patrol & security
• Harbor operations and coastal monitoring

8. Key Technical Advantages

• Dual‑spectrum imaging for full‑time situational awareness
• High‑sensitivity thermal detection in zero‑light conditions
• AI‑powered fire/smoke detection and object tracking
• Stabilized gimbal ensures clarity in rough seas
• Wide‑area coverage with continuous rotation
• Network‑ready for shipboard integration
• Engineered for harsh marine environments

Category	Parameter	Specification

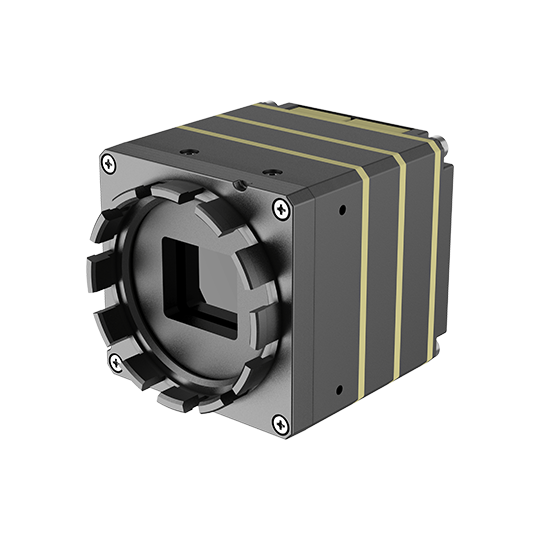

Thermal Imaging	Detector Type	Uncooled VOx Microbolometer
	Resolution	640*512
	Pixel Pitch	17 μm
	NETD Sensitivity	< 35 mK @ f/1.0
	Spectral Range	8-14 μm
	Frame Rate	25 Hz / 30 Hz
	Thermal Lens Options	50mm|30-180mm|35-750mm
	Focus	Fixed or Motorized
	Image Enhancements	DDE, 3D‑NR, AGC, Marine Thermal Palette
	Detection Range (Human)	Up to 3.5 km (lens-dependent)
	Detection Range (Vessel)	Up to 22.5 km (lens-dependent)
Visible‑Light Camera	Sensor Type	1/2.8″ Progressive Scan CMOS
	Resolution	1080p (2MP) / 4MP
	Optical Zoom	10x / 20x / 30x
	Digital Zoom	16x
	Minimum Illumination	0.01 Lux (Color), 0 Lux (IR On)
	WDR	120 dB
	Focus	Auto / Manual
	Image Enhancements	BLC, HLC, 3D‑NR, Defog, Anti‑Glare
Dual‑Spectrum Fusion	Fusion Modes	Thermal / Optical / PiP / Split‑View
	Sync Tracking	Linked Thermal‑Optical PTZ Tracking
	Overlay	Thermal Contours on Visible Image
Stabilized Gimbal	Stabilization Accuracy	0.028° Mechanical Stabilization
	Horizontal Rotation	360° Continuous
	Vertical Tilt	-90° to +90°
	Rotation Speed	0.1°-60°/s
	Anti‑Vibration	Marine‑grade Multi‑Axis Damping
	Housing Material	Corrosion‑Resistant Aluminum Alloy
	IP Rating	IP67
AI Intelligent Functions	Fire Detection	Early‑stage Thermal Anomaly Detection
	Smoke Detection	AI‑based Smoke Pattern Recognition
	Object Tracking	Auto‑tracking of Vessels / Debris / Buoys
	Collision Prediction	Vector Analysis + Proximity Risk Estimation
	Alarm Output	On-screen Alert + Network Push
Network & Interface	Network Port	1* RJ45 (10/100/1000 Mbps)
	Protocols	ONVIF, RTSP, RTP, HTTP, TCP/UDP
	Video Compression	H.265 / H.264 / MJPEG
	Stream Output	Dual‑stream / Triple‑stream
	Integration	Shipboard LAN, NVR, VMS, Helm Displays
	Control Interface	Web UI / SDK / ONVIF / Joystick
Electrical	Power Supply	DC 12-24V / PoE++
	Power Consumption	18-35W
	Surge Protection	TVS + Marine Grounding
Environmental	Operating Temperature	-20°C to +60°C
	Storage Temperature	-40°C to +70°C
	Humidity	10-95% RH, Non‑condensing
	Anti‑Corrosion	Marine‑grade Coating
Mechanical	Weight	3.5-6.5 kg
	Mounting	Marine Mast / Radar Arch Mount
Optional Accessories	Remote Controller	Multi‑axis PTZ Controller
	NVR Recorder	Marine NVR
	Sun Shield	Anti‑glare Shield
	Heater Module	Anti‑fog / Anti‑ice Heating
